介紹
β-硼酸鋇（BBO）是非線性光學晶體領域中的杰出代表，因其廣闊的透明范圍、高非線性系數和較大的相位匹配帶寬等優異特性而備受矚目。這些特性使得BBO晶體在諸多應用中廣泛受到歡迎，包括頻率倍頻（SHG）、光學參量振蕩器（OPO）和電光調制。與我們之前介紹的不同類型激光晶體一樣，這些BBO晶體也是通過多種生長方法制備的，每種方法都有其獨特的優缺點。本文深入探討BBO晶體最常見的生長方法，詳細闡述它們的優勢和局限性，從而為大家提供關于BBO制備較為全面的了解。
BBO晶體的特性
BBO晶體以其廣闊的透明范圍、較高的損傷閾值、較大的大非線性系數和廣泛的相位匹配能力而著稱。這些特性根據所采用的生長方法而異，直接影響晶體在不同應用中的性能。
透明范圍：BBO晶體展示出189到3500納米的廣泛透明范圍，使其在各種波長下都能使用。特別是通量法和水熱法可以產生透明度極佳的晶體，因為它們具有較低的生長溫度和較慢的冷卻速率。
損傷閾值：BBO晶體具有較高的損傷閾值，這對于高功率應用至關重要。由于其能夠生長大尺寸、無缺陷的晶體，CZ和Bridgman方法通常能得到具有高損傷閾值的BBO晶體。
非線性系數：BBO晶體擁有大的非線性系數，在頻率轉換應用中提高了效率。CZ方法提供的精確控制可以通過在生長過程中調整晶體的取向來優化這些系數。
相位匹配能力：BBO晶體具有廣泛的相位匹配能力，使其適用于各種應用。通量法在產生各種晶體形狀方面的多樣性可以最大程度地提高不同應用的相位匹配效率。
BBO晶體的生長方法
Czochralski方法
Czochralski（CZ）方法是制備單晶材料（包括BBO）的一種成熟技術。它涉及將原材料在坩堝中熔化，然后從熔體中緩慢拉出種子晶體以產生所需的晶體。
優勢
質量：CZ方法可以產生大尺寸、高質量的晶體，缺陷較少，非常適用于需要大孔徑的應用。
控制：可以精確控制生長速率和晶體取向，這會極大地影響晶體的性質。
缺點
能耗：CZ方法能耗較高，需要完全熔化原材料。
雜質：來自坩堝材料的污染可能導致晶體中夾雜物。
通量法
通量法，又稱溶液生長法，是另一種常用的BBO晶體生長技術。它涉及將原材料溶解在適當的通量中，然后緩慢冷卻以析出晶體。
優勢
低溫度：通量法的操作溫度低于CZ方法，降低了晶體的能耗和熱應力。
多樣性：它可以產生各種晶體形狀，使晶體設計更加靈活。
缺點
尺寸限制：通量法通常產生的晶體比CZ方法小，可能不適用于需要大晶體尺寸的應用。
雜質：與CZ方法類似，通量法也存在通量夾雜物的風險，可能影響晶體的光學質量。
水熱法
水熱法涉及將原材料在水性溶液中在高壓高溫條件下溶解，然后緩慢冷卻以促進晶體生長。
優勢
低溫度：水熱法的操作溫度相對較低，降低了晶體的熱應力和能耗。
質量：它可以產生質量較高、缺陷和夾雜物較少的晶體。
缺點
生長緩慢：水熱法的生長速率通常較慢，不利于大規模生產。
高壓力：該方法所需的高壓力需要特殊設備和安全措施，增加了整體復雜性和成本。

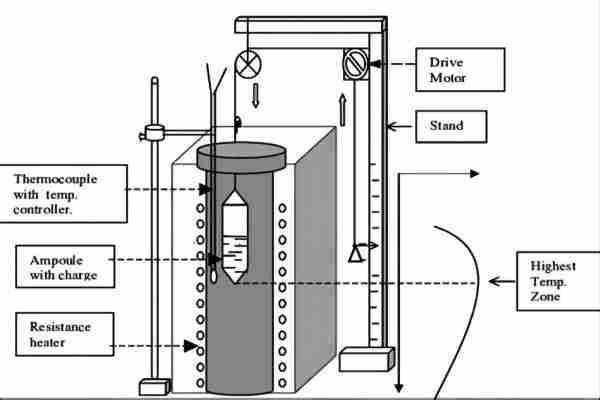

Bridgman方法
Bridgman方法通過在溫度梯度中緩慢冷卻熔融材料來形成單晶。當材料的熔點對于CZ方法來說過高時，特別適用該方法。
優勢
簡易性：Bridgman方法相對簡單，不需要種子晶體，減少了生長過程的復雜性。
尺寸：它可以產生大尺寸的晶體，有利于需要大孔徑的應用。
缺點
質量：使用Bridgman方法生長的晶體可能有更多的缺陷，光學質量較CZ方法生長的晶體更低。
效率：該方法在產量方面較低效，因為在過程中會有材料損失。
BBO晶體的應用
了解BBO晶體的生長方法和特性有助于理解它們廣泛的應用領域。以下是一些BBO晶體發揮重要作用的關鍵領域：
頻率倍頻（SHG）：由于BBO晶體具有高非線性系數和廣泛的相位匹配能力，它們廣泛用于二次諧波產生（SHG）或頻率倍頻，將光子束轉換為能量加倍的光子，從而將波長減半。
光學參量振蕩器（OPO）：BBO晶體的廣泛相位匹配能力和高損傷閾值使其成為光學參量振蕩器的理想選擇。這些器件通過利用BBO晶體的非線性特性，在一個輸入光波的基礎上產生一對頻率不同的光波。
電光調制：由于BBO晶體具有較高的電光系數，它們也被用于電光調制器中。這些器件可以快速改變光強、相位或偏振，在各種光學系統中起著至關重要的作用。
非線性光學：除了上述列出的應用，BBO晶體在多種非線性光學過程中也得到了應用，包括和差頻率發生、光學參量放大和太赫茲波發生。
結論
在非線性光學晶體中，生長方法在確定BBO晶體的特性和性能方面起著關鍵作用。每種生長方法——Czochralski、通量法、水熱法或Bridgman——都有獨特的優勢和局限性，影響著晶體的質量、尺寸和適用性。因此，了解這些方法對于在各種應用中制造和使用BBO晶體至關重要。BBO晶體的獨特特性使其在頻率倍頻、光學參量振蕩器和電光調制等各種技術進步中發揮著重要作用。
常見問題解答
問1：BBO晶體有哪些關鍵特性？
BBO晶體具有廣闊的透明范圍、高損傷閾值和寬廣的相位匹配范圍，使其在各種技術應用中不可或缺。
問2：為什么硼酸對BBO晶體生長至關重要？
硼酸是BBO晶體生長的基礎成分，有助于產生高質量的晶體。正確管理硼酸的使用對于獲得期望的光學特性至關重要。
問3：化學計量平衡如何影響BBO晶體的質量？
硼酸和碳酸鋇之間的化學計量比決定了生成的BBO晶體的質量和光學特性。
問4：什么是Bridgman技術？
Bridgman技術是用于單晶生長的方法，涉及在溫度梯度中緩慢冷卻平衡混合的碳酸鋇和硼酸。
問5：BBO晶體有哪些應用？
由于其獨特的特性，BBO晶體在激光技術、光子學和通信等眾多光學應用中至關重要。
